Model: HL-8B semi-automated aluminum saw cutting machine
▲ HL represents the model of Hantian company semi-automated aluminum plate sawing machine.
▲ 8 represents the size of the aluminum plate sawing machine, 8b can be sawed 2600 mm.
This apparatus can be applied to the sawing of aluminum plates, copper plates, composite panels, plastic plates.
One. Technical specifications and parameters:
| model | HL-8B | |
| efficacy | Crop width | 2600mm |
| Maximum cutting height | 120mm | |
| Maximum saw blade exposed height | 180mm | |
| Main saw motor | 15kw | |
| Strip | Strip diameter | Ø460mm |
| Main saw shaft diameter | Ø 38mm | |
| Spindle speed | Max: 3950 r.p.m. | |
| Sawing | Walking inverter motor | 1.5kw |
| Automatic scale (optional) | Servo fixtler motor | 0.75kw |
| Fixed length | 1500mm | |
| Air pressure | ≥5.0 kg / cm2 | |
| Workbench height | 1130 mm | |
| Machine tool shape (length × width × height) | 5300mm × 5890mm × 1970mm | |
| Voltage | 380V | |
| hertz | 50Hz | |
| 主 | Machine weight | About 7000kg |
The above specifications are not notified if there is any change
Second, the main unit and name of the machine:
The main unit name of the HL-8B semi-automatic aluminum plate sawing machine.
3. Equipment execution standard:
Metal cutting general technical conditions: GB / T 9061-2006
General technical conditions for metal cutting welding: JB / T 9873-1999
General technical conditions for metal cutting hydraulic system: JB / T10051-1999
Industrial machinery and electrical equipment, the first part of general technical conditions: GB / T5226.1
Machine safety protection: GB 16454
Electrical system: GB 5226.1
All components of the equipment and various metering units are all units (SI) units; the main components of the equipment include robustness, electrical and electronic devices to prevent errors or accidental accidents
Device processing accuracy:
Processing accuracy: non-flat ± 0.3mm / m, inclination ± 0.5 mm / m, roughness ≤ Ra32.
Feed length accuracy: ± 0.5mm / m.
IV. Equipment security performance:
| Three-color light | Standardization |
| Voltage requirements | AC380V ± 5% |
| Machine tool insulation | Test with insulation, meet 5MΩ or more |
| Elevation requirements | Working altitude is generally less than 1km |
| working environment | The ambient temperature must not exceed 0 ~ 40 ° C, the relative humidity is 95% or less (unrupt) |
| Electrical protection level | Standard IP54 |
Fives. Mechanical characteristics:

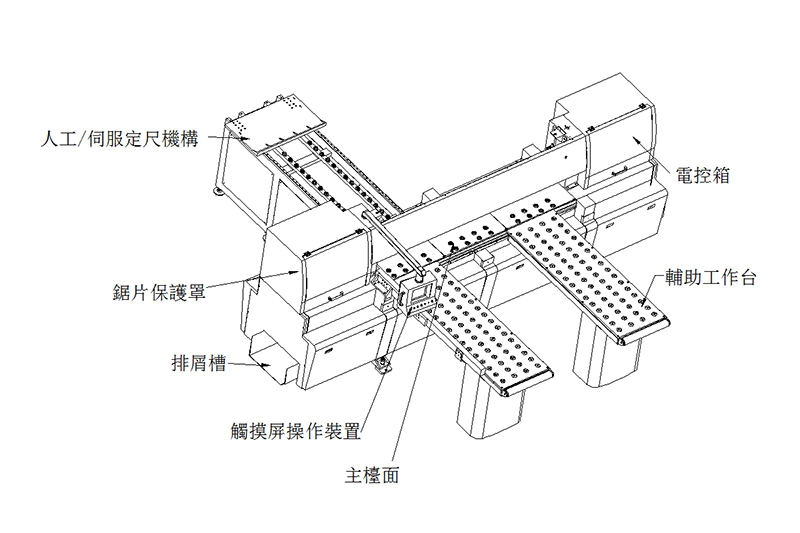

(1) This machine is composed of the following major components
a. Equipment main body d. Touch screen | Control panel
b. Overall crimping system E. Cooling system
C. Automatic fixing device F. Main workbench
G. Floating Station
(2). Main component structure and other
a. Equipment main body
The equipment main body consists of four parts: the main frame, a lifted mechanism, a head walking mechanism, a saw blade clamping mechanism.
(I) host
The main frame adopts a welding process and is soldered after returning.
(II) can be lifted
The head lift is designed with the upper and lower parallel bundle, and the steady lift head of the hydraulic system is cut. When the sawing is cut, the sawing needs of the display of different thicknesses can be used to meet the sawing needs of different thicknesses. While implementing material saw, there is also a resource, which increases the service life of the saw blade.
(III) Machine head mechanism
The flexoffall reducing motor driven by the head traveling mechanism, the gear rack drive, and combines the upper and lower parallel double slide rails, effectively reducing the head inertia of the head, enhances the smooth performance of the giant seat, and effectively reducing the shot of the movement Reach the best cut straight precision. The top speed of the trip can reach 15 meters per minute, and the retreat can reach 18 m / min.
(IV) saw blade clamping mechanism
The double flange is used in conjunction with the nut, and the nut is tightened to tighten the nut, lock the saw blade, which is convenient and fast.
b. Overall crimping system
With bicycle pressure, integral compression hood form, the air pressure is placed on the upper surface of the press, and the aluminum sheet material is placed on the countertop, ensuring synchronous pressure.
While the small sheet is more accurate while the small sheet is sawed. The role of the overall crimping is good, and the noise is reduced, which greatly improves the safety of the entire sawing process.
C. Automatic fixing device
Using an automatic pair device, fit the servo motor, which is convenient for the ruler. If the blade sawing process is performed, as long as the fixing device can be adjusted, there is no need to cut the knife to cut the knife through the operator, and increase production efficiency.
d. Touch screen | Control panel
Electrical system adopts control panel and touch screen design, easy to operate, high efficiency. Control the switch button and the emergency stop button on the control panel to facilitate the operation of the operator. All control buttons are intuitive in touch screens, can be performed through the function buttons in the touch screen, and this machine also uses a workstation design, select the workstation in the touch screen, as long as you set the sawing of a batch sheet Length and sawing, next to the sheet, then press the run on the touch screen. The position of the sawing is only in the position of the sheet length, which not only decreases the sawing cycle, but also improves the sawing efficiency of the batch sheet.
e. Cooling system
It uses vegetable cutting oil, energy-saving and environmentally friendly, forced oil by cooling system, and oil mist cooling, cooling effect.
f. Main Table:
The main worksheet is a floating table, and the copper airfoil is disposed on the panel of colloidal chrome plating. When the durability is enhanced, the work efficiency of the sheet material on the workers is also improved.
G. Floating Station:
1. Floating workbench size: 1520 mm (long) X500 mm (width) X2.
2. The surface of the floating table is equipped with a panel of hard chrome plating, and the copper air floating beads are equipped, the true roundness is enough, and it is not easy to leak, the best buoyancy is blinded from dust intrusion.
six. Major shopping list
| Serial number | name | Origin |
| 1 | servo motor | Japan Panasonic |
| 3 | Sawhead walking reducer | Domestic production |
| 4 | Motor | Dongyuan |
| 5 | Electrical component | Schneider / domestic |
Seven. Mechanical standard：
| Saw host | 1 set | |
| Automatic fixing | 1 set | |
| Front workbench (with ball) | 2 | |
| Spare parts | A batch (see box) | |
| On-site installation | Need to provide lifting equipment and common tools, supplier guidance installation, need to assist | |
| On-site debugging | Supplier guidance | |
| On-site training | Suppliers are responsible for equipment operation, electrical principles, etc. necessary maintenance technical training | |
| On-site acceptance | Both parties are responsible | |
| Technical data (delivery with equipment) | Certificate | 1 copy |
| Operating instructions | 1 copy | |
| Packing List | 1 copy | |
Eight, packaging, transportation
1. The packaging of the equipment should meet long-distance transportation, multiple handling and storage requirements. The packaging should be robust, reliable, anti-corrosion, moisture, anti-theft.
2. Easy to lose, special spreaders, professional tools, etc., to be individually packaged and indicate the character's name and easy-to-off.
3. Due to the loss, defect, mold, rust, moisture and defects such as the seller package and transportation, the seller is responsible for repair, supplementing or replacing.
4. The transportation fee seller is provided.
