Model: HL-12BNC computer aluminum plate sawing machine
▲ HL represents the model of Aluminum plate sawing machine in Hantian.
▲ 12 represents the size of the aluminum plate sawing machine, 12 can be sawed 3800 mm.
▲ BNC represents this aluminum plate sawing machine for fully automatic model.
One. Technical specifications and parameters:
| model | HL-12BNC | |
| Cutting length | 3800mm | |
| Sawing ability | Crop width | 3800mm |
| Maximum cutting height | 120mm | |
| Maximum saw blade exposed height | 125mm | |
| Main saw motor | 15kw | |
| Strip | Strust saw diameter | Ø460mm |
| Main saw shaft diameter | Ø 38mm | |
| Main saw speed | 4000 r / min | |
| Sawing | Walking inverter motor | 1.5kw |
| Advance speed | Quick 9 m / min | |
| Rear speed | Quick 17 m / min | |
| Automatic feeding motor | AC 3KW | |
| Air pressure | ≥5.0 kg / cm2 | |
| Workroom from the ground height | 1130 mm | |
| Machine tool shape (length × width × height) | 7100 × 7700 × 1980 | |
| Voltage | 380V / 50Hz | |
two. Mechanical characteristics:
▲ Touch-style operation screen:
1. Touch 10 inch operation screen.
2. Alternatively, multiple sets of workbenches can be set, which is convenient for handover.
3. Guide input function.
4. Fault self-detection function.
▲ Work clip seat:
1. The two-side bed rail of the work clamp is composed of welding steel beam, and the gear and the raft drive are plated with a gear and a tooth row drive while plating a hard chrome rail and the other side, and the magnetic ruler reaches a precise degree in double ratio. With reduction and 2 kW daily servo motor precision and fast drive positioning, the maximum speed reaches 6 meters per minute.
▲ Pressure beam structure:
1. Adopt integral pressure beam structure, gear strip and cylinder matching, uniformly drive the rolling beam, and the pressure is uniformly distributed on both sides of the cut center line, and the strip is installed in the bottom of the pressure beam to avoid the press, press The surface of the damaged work, ensuring precision cutting quality.
▲ saw:
1. Adopt the upper and lower parallel linear slide rails, effectively reduce the interlocking of the sawing movement, enhance the smoothness of the huge movement, and effectively reduce the shift shaking of the movement to achieve the best cut line accuracy.
2. Main saw motor 20HP (15 kW), the giant scooter uses a 2HP (1.5 kW) variable frequency motor with the speed reducer and precision gear tooth row drive, the main saw with the oil cylinder, so the saw is more powerful, avoiding the traditional chain drive The truck saw, squeezing, etc. generated.
3. Sawing Cutting Positioning can start cropping from the program width editing settings.
4. A square tank joint is disposed under the sawing, and there are two sides of film to cover each other, extend to the end of the cut, to ensure the dust tank reaches the highest dust collective effect.
5. The sawing stroke cuts up to 6 meters per minute, and the back reaches 7 meters per minute, and the height of the work is not adjusted by the panel knob, and the cutting speed can be changed at the time of cutting. Users can adjust their preference requirements different from their own nature.
▲ Main Table:
The main worksheet is also a floating table. The copper air drum is disposed on the panel of colloidal chrome plating. When the durability is enhanced, the work efficiency of the workers are also improved.
▲ Crossing claws:
1. Number of work clips standard configuration: 12 support clips.
2. Each jam is equipped with a cylinder with a lever method, and when it is pulled the working object, it is possible to ensure that the work material does clamp the sheet.
▲ dustproof
Segmental dustproof pieces use transparent plastic sheets that can effectively inhibit dust discharge and can achieve safety protection.
▲ Electronic control box configuration:
1. All electronic parts are purchased in Taiwan.
2. The servo motor and servo drive are Japanese Panasonic.
3. The inverter is Taiwan's English Waritatten.
4. Electronic parts do not need cooling system at all, for popular electronic parts, can purchase replacement on the market without worrying about dust invasion, as long as it is regularly cleaned.
▲ Power supply:
1. The power supply is a three-phase supply for industrial, with a voltage of 380V / 50Hz.
▲ air pressure supply:
1.Use air pressure to 5 ~ 6 kg / cm
▲ dusty:
1. The supplier provides a scraper tandem system and is simultaneously installed in place with the sawing machine to ensure the chips.
2. ▲ Standard equipment:
1. Solden saw blade: carbide saw blade (aluminum plate special).
2. Workclip: 12.
3. Floating feedstock: 1520mm x 500mm x 3.
4. Toolbox contains a tool 1 group.
5. The main saw motor is arranged in the machine.
Third, the spare parts for spare parts
| Serial number | name | specification | Number of pieces | Note |
| 1 | Hexagon wrench (within) | 1 set | ||
| 2 | Screwdriver (word + cross) | 1 set | ||
| 3 | Open wrench | 17-19 19-22 | 2 | |
| 4 | adjustable wrench | 250 mm | 1 | |
| 5 | Ground screw and pad | 1 set | ||
| 6 | fuse | 10 | ||
| 7 | butter | 1 | ||
| 8 | tape measure | 5 m | 1 | |
| 9 | Butter gun | 100cc | 1 | |
| 10 | user's manual | 1 | ||
| 11 | Saw blade | 460 * 38 * 4.0 * 60T | 1 |

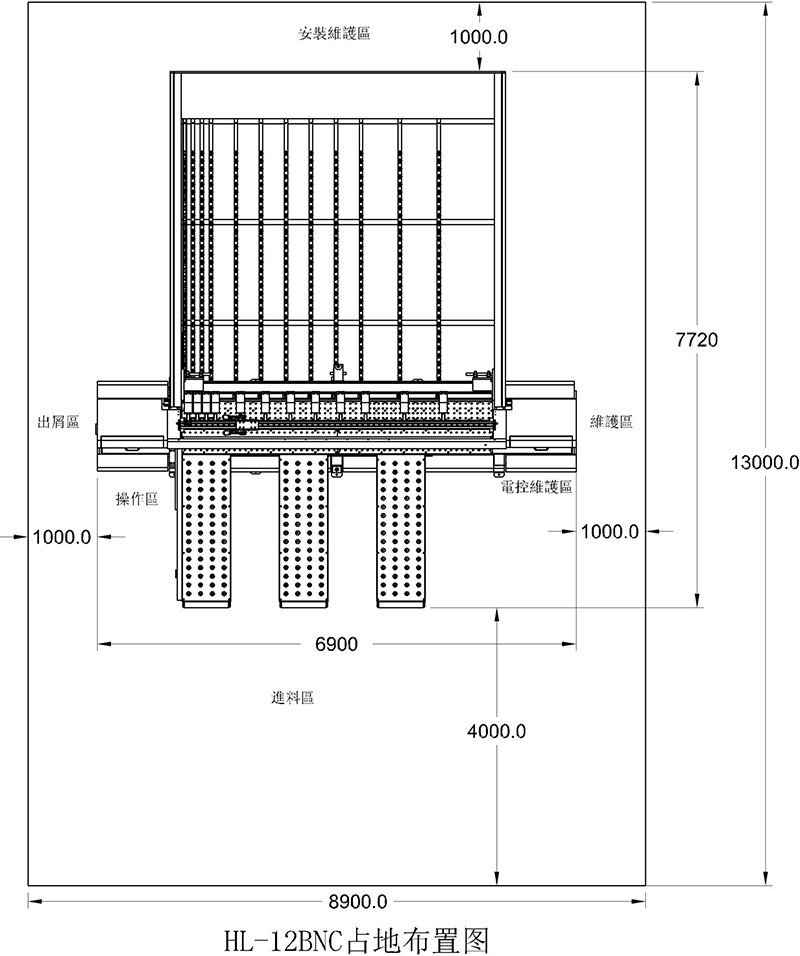

Fourth, occupying the floor
HL-12BNC mechanical partial easy loss list and consumables
| Serial number | Product name | Specifications / model | Origin | unit | Quantity | Note | |||||
| 1 | Multi-wedge | PL1574 | Domestic production | 根 | 1 | ||||||
| 2 | Bennar | IA-19 (stainless steel ball) | Domestic production | 个 | 192 | ||||||
| 3 | Saw blade | Ø460 * Ø38.0 * 4.0, 60 teeth | Domestic production | 片 | 1 | ||||||
| 4 | Escape cylinder | Du63 * 50 | import | 只 | 12 | ||||||
| 5 | Dust-proof barrel | SDA32 * 75 | import | 只 | 2 | ||||||
| 6 | Pressing hood cylinder | Du80 * 150 | import | 只 | 2 | ||||||
| 7 | Auxiliary floating cylinder | Jg63 * 10 | import | 只 | 24 | ||||||
| 8 | Spindle bearing | 6209zz | import | 只 | 3 | ||||||
| 9 | Feeding walking wheel bearings | 62/22 | import | 只 | 3 | ||||||
| 10 | Feed side guide wheel bearing | 6002 | import | 只 | 3 | ||||||
| 11 | Hydraulic oil | 46 # anti-milling hydraulic oil | Domestic production | L | 40 | ||||||
| 12 | Coolant | Micro lubricating oil | import | gallon | 1 | ||||||
HL-12BNC electronically controlled part of easy loss list and consumables
| Serial number | name | unit | Quantity | model | Brand | ||||||||
| 1 | Inverter | PCS | 1 | CHF100A 18.5KW | InVt | ||||||||
| 2 | Motion detector | PCS | 1 | CD33-250N (P) -422 | Optex | ||||||||
| 3 | Control transformer | PCS | 1 | NSK-1.0 AC380 / 220 / 3P / 8.0KVA | chint | ||||||||
| 4 | Switching power supply | PCS | 1 | S-200-24 8.3A | Ming Wei | ||||||||
| 5 | Switching power supply | PCS | 1 | NES-15-5 3A | Ming Wei | ||||||||
| 6 | fuse | PCS | 1 | FUSE-6A | FUSE-BOX | ||||||||
| 7 | Intermediate relay socket | PCS | 15 | RXZE1M2C | Shneider | ||||||||
| 8 | Intermediate relay | PCS | 15 | RXM2CB2BD | Shneider | ||||||||
| 9 | Hot overload relay | PCS | 1 | LRD07C 1.6 ~ 2.5A | Shneider | ||||||||
| 10 | Hot overload relay | PCS | 1 | LRD12C 5.5 ~ 8A | Shneider | ||||||||
| 11 | Electromagnetic contactor | PCS | 1 | LC1D40M7C AC220V | Shneider | ||||||||
| 12 | Electromagnetic contactor | PCS | 1 | LC1D18M7C AC220V | Shneider | ||||||||
| 13 | Electromagnetic contactor | PCS | 2 | LC1D09M7C AV220V | Shneider | ||||||||
| 14 | Power circuit breaker | PCS | 1 | EZD100E3100N | Shneider | ||||||||
| 15 | Proximity switch | PCS | 12 | PM12-04N | Fotk | ||||||||
| 16 | Power switch lock | PCS | 1 | XB-BG21C | Shneider | ||||||||
| 17 | Power indicator | PCS | 1 | XB2 BVM1C AC220V | Shneider | ||||||||
| 18 | Run button with light | PCS | 1 | XB2 BW33B1C (green) DC24V | Shneider | ||||||||
| 19 | Yellow flat button | PCS | 1 | XB2-BA51C (1NO) | Shneider | ||||||||
| 20 | emergency button | PCS | 2 | XB2BS542C (1NC) | Shneider | ||||||||
| 21 | Saw tap speed potentiometer | PCS | 1 | Mexic0 | B0urns | ||||||||
| 22 | Dissolute luster | PCS | 2 | SZL-803/150 | Axial | ||||||||
